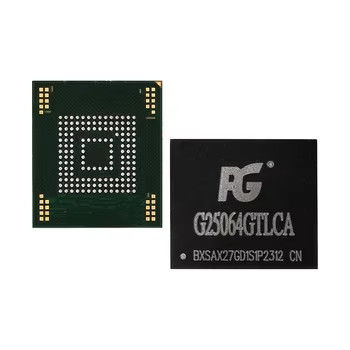

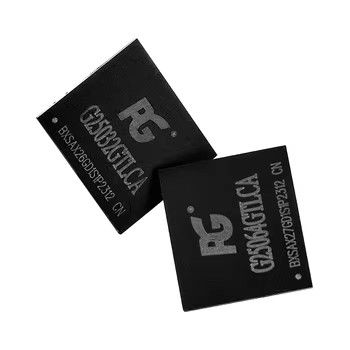

256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch

256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch
256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch 256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch

Large Image :  256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch

Product Details:
Place of Origin: China
Brand Name: PG
Model Number: G2516GMLCA
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10 to 15 days
Payment Terms: L/C, T/T
Supply Ability: 100K a month

256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch

Description
Agreement: HS400 Read Speed: Up To 330MB/s
Write Speed: Up To 240MB/s Operating Temperature: -25℃~+85℃
Choice Of Flash: MLC/3DTLC/QLC NAND Capacity: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB, 512GB
Operating Voltage: 2.7V - 3.6V Dimensions: 11.5mm X 13mm X 1.2mm
Highlight:

Commercial Grade 128GB EMMC5.1 Storage

,

128GB EMMC5.1 Storage Memory Chip

,

VR Smart Watch EMMC5.1 Storage

EMMC5.1 Memory Chip 8GB 16GB 32GB 64GB 128GB 256GB 512GB For AR VR Smart Watch Game Console Set-Top Box



PG e∙MMC is an embedded flash memory storage solution.

PG e∙MMC is a hybrid device combining an embedded flash controller include LDPC based ECC and flash memory, with JEDEC Standard e∙MMC 5.1 interface.eMMC5.1

The e∙MMC controller include LDPC based ECC directs the Flash management, including ECC, wear-leveling, IOPS optimization and read sensing, significantly reducing the storage management burden of the host CPU.

256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch 0



Package size

  • 11.5mm x 13.0mm x 1.0mm
  • 11.5mm x 13.0mm x 1.16mm



Operating Voltage range

  • VCC = 2.7V~3.6V (typical 3.3V)
  • VCCQ = 1.7V~1.95V(typical 1.8V), 2.7V~3.6V (typical 3.3V)



Temperature

  • Operating : -25℃ ~ 85℃
  • Storage : -40℃ ~ 85℃



Program/Erase Cycle

  • >= 2000

256GB 128GB EMMC5.1 Storage Memory Chip Commercial Grade For AR VR Smart Watch 1

Application scenario
Industrial automation: used in control systems, data acquisition equipment, sensor systems, etc., requiring efficient and stable operation in extreme environments.


In-vehicle electronics: In-vehicle navigation systems, in-vehicle entertainment systems, in-vehicle control units, etc., need to ensure data stability under vibration, temperature fluctuations, and long operating conditions.


Medical equipment: Used for medical monitoring equipment, surgical equipment, medical image storage, etc., to ensure the safety and stability of data.


Embedded system: intelligent POS machines, vending machines, intelligent terminals and other equipment, to provide efficient and stable storage support.


Military and aerospace applications: In harsh environments where data storage reliability is required, eMMC provides the necessary assurance.
