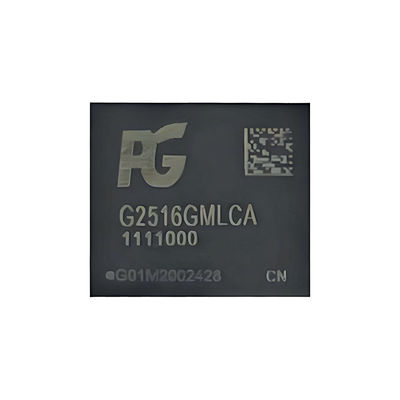

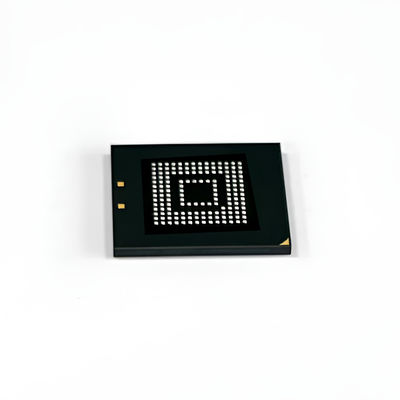

16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard

16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard
16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard 16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard

Large Image :  16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard

Product Details:
Place of Origin: China
Brand Name: PG
Model Number: G2516GMLCA
Payment & Shipping Terms:
Price: Negotiable
Delivery Time: 10 to 15 days
Payment Terms: L/C, T/T
Supply Ability: 100K a month
Contact Now

16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard

Description
Capacity: 8GB-512GB Agreement: HS400
Read Speed: Up To 330MB/s Write Speed: Up To 240MB/s
Operating Temperature: -25℃~+85℃ Choice Of Flash: MLC/3DTLC/QLC NAND
Highlight:

BGA153 EMMC 5.1 16GB Memory Chip

,

Automotive Grade EMMC 5.1 Memory Chip

,

Hs400 Standard EMMC 5.1 Memory Chip

EMMC5.1 Memory Chip 8GB 16GB 32GB 64GB 128GB Emmc Ic BGA153 EMMC4G Flash Memory Ic Chip High Quality


The Gemini series eMMC5.1 is based on high-performance controller LDPC technology , Samsung and KIOXIA BiCS5 3DTLC/YMTC QLC NAND Flash for multi-layer stacking, complying with the HS400 standard. It meets customers' demanding requirements for large capacity, high performance, low power consumption, compatibility, and stability of eMMC in complex and diverse applications.

CA EMMC5.1 Specification
Model G2564GTLCA G25128TLCA G25256TLCA G25512TLCA
NAND flash 3DTLC NAND 3DTLC NAND 3DTLC NAND 3DTLC NAND
Capacity 64GB 128GB 256GB 512GB
CE 1 2 4 4
Read speed up to 330MB/s up to 330MB/s up to 330MB/s up to 330MB/s
Write speed up to 240MB/s up to 240MB/s up to 240MB/s up to 240MB/s
Operating temperature
-25℃~85℃
-25℃~85℃
-25℃~85℃
-25℃~85℃
EP ≥3000 ≥3000 ≥3000 ≥3000
Packaging specification BGA 153 BGA 153 BGA 153 BGA 153
Size 11.5mmx13mmx1.0mm 11.5mmx13mmx1.0mm 11.5mmx13mmx1.2mm 11.5mmx13mmx1.2mm



Technical details of eMMC chip
Pin definition

  • The pin definition of the eMMC chip is slightly different from that of a general SIM card or SD card, and needs to be modified appropriately according to the specific hardware device and chip specifications.



PCB design considerations

  • Power supply and interface: Ensure a stable power supply and ground cable for the eMMC chip.
  • Layout and routing: The length of the signal line should be matched as far as possible to reduce the delay and distortion of signal transmission.



Advantages of eMMC chips
Suitability for mobile devices

  • Because of its compact design and high performance, eMMC chips have become the most popular storage units in mobile devices.



Data security and reliability

  • By integrating controllers and using advanced communication protocols, eMMC chips provide data security and reliability.





In short, eMMC chips play a crucial role in modern mobile devices due to their high efficiency, reliability and easy integration.



16GB EMMC 5.1 Memory Chip BGA153 Automotive Grade EMMC Chip HS400 Standard 0

WHY CHOOSE US?
1. Strong research and development strength
2. Our factory has advanced packaging and testing technology
3. Complete storage product production line
4. Operating our own brand PG focuses on the storage semiconductor field
5. Possess multiple copyright patents
6. High cost-effectiveness, and competitiveness
